LUXÉPARK 3LP & 2LP
LUXÈPARK 3LP
Semi-automatic Parking System with Pit and Without Columns at entry
-
The entrance level consists of sliding platforms with an empty space to enable the platform to manoeuvre left or right
-
This sliding operation then allows either of the lifting platforms to be raised or lowered to present the requested drive on parking platform
-
Each grid has its own entry gate at the middle entrance level
-
The smallest system design is a 2 grid to provide 5 parking positions
-
The system can be extended by adding additional grids. To minimise access time, it is recommended not to combine more than 10 grids for 29 parking positions with one common power unit.
Description
- Independent parking on 3 levels, with pit
- Load capacity per parking position:
- Standard 2000kg 5550mm pit length
- Upgradeable to 2600kg 5600mm pit length
Applications
- Multi-residential developments
- Townhouse developments
- Mixed use developments

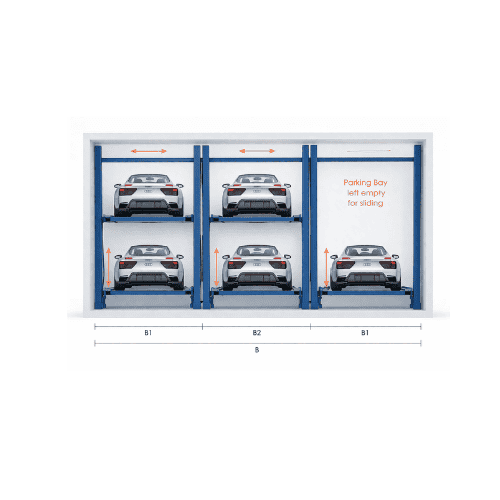

LUXÈPARK 2LP
Semi-automatic parking system with cantilever platforms for easy access
The entrance level consists of sliding platforms with an empty space to enable the platform to manoeuvre left or right
The lower level consists of the lifting platform. The lifting platform will lift into the empty space on the entrance level.
The smallest system design is a 2 grid to provide 3 parking positions
- The system can be extended by adding additional grids. To minimise access time, it is recommended not to combine more than 10 grids for 19 parking positions with one common power unit.
Description
- Independent parking on 2 levels, with pit
- Lower level with lifting platforms.
- Entrance level with sliding platform and empty space
- Load capacity per parking position:
- Standard 2000kg
- upgradeable to 2300-2600kg
Applications
- Multi-residential developments
- Townhouse developments
- Mixed use developments
