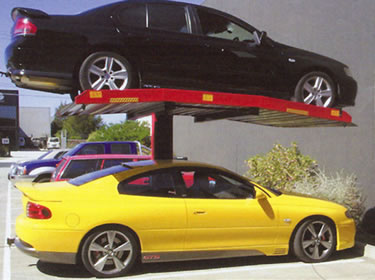

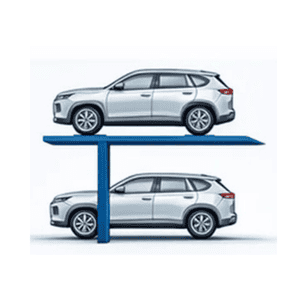

Duplex Parking System

The Duplex parking system can lift your car and double your car parking space.

  • Above Ground Dependent Car Parking
  • Double your car parking
  • Single Lifting Column
  • Ideal for Residential or Commercial Use
  • CE Approved
Specifications
Motor
single phase 220V, 3 phase 220/380V 50Hz or 60Hz
Capacity
2000kg (2500kg model available)
Controls
low voltage (24V) with deadman system
Height of Lifting
from 0 – 1900mm (with adjustable end of run)
Dimensions
lifting platform 4000mm x 1840mm
Column width
330mm x 250mm – height 2300mm the specification above may be changed according to your requirements.
On request
– platform width 2000mm – 2100mm
– lifting height 2000mm – 2100mm
– removable central section (for car maintenance)

Applications

  • Residential buildings
  • Hotels
  • Office Buildings
