Uniparker
Independent parking through lifting and shifting technology with pit
Uniparker – a semi-automated parking system – enables independent parking on up to 4 tiers.
An empty parking space at the desired position is created by lifting, lowering and shifting platforms. Gates at the entrance area provide a maximum level of protection. Beyond security, car drivers will enjoy maximum comfort due to the horizontally accessible platforms and the removal of pillars at the entrance area.
The parking system is most appropriate for indoor car parks used by hotels or office buildings as well as in residential areas.
- Semi-automated parking system using intelligent shifting technology
- Independent parking (any vehicle can be retrieved without moving another vehicle)
- Modular segments to fit to your parking needs
- Variable car height (between 150 cm and 205 cm) according to the available clear height and pit depth
- Maximum parking convenience
- Reduced collision risk when parking a car due to the removal of pillars at the entrance area
- Width of parking space between 230 cm and 270 cm
- Platform capacity of up to 2.6 t

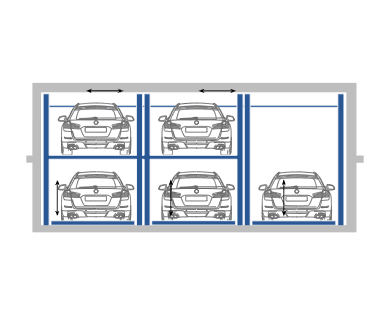

Uniparker N5202
Independent and semi-automated parking on 2 tiers without pillars at the front. Lifting platforms are used on the lower tier and shifting platforms at the entrance level.
- Independent parking on 2 levels, with pit
- Lower level with lifting platforms, entrance level
- Lower level with lifting platforms, entrance level with sliding platforms and one empty space
- Modular construction: Depending on the conditions on site, it can be possible to add segments at will
- Load per parking space: Standard 2.000 Kg optional up to 2.300 Kg or 2.600 Kg
Clear Height | Pillar Height | Car Height Lower Tier | Car Height Upper Tier |
|---|---|---|---|
From 175 cm | 220 cm | 150cm | 195 cm |
To 230 cm | 250 cm | 205 cm | 225 cm |
Applications
- Private houses
- Residential buildings
- Hotels
- Office Buildings
- Car Dealers

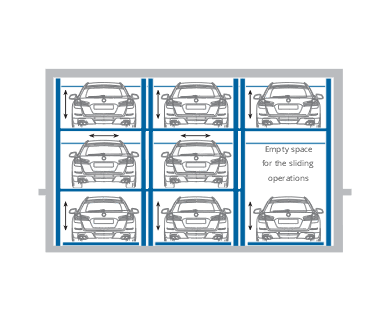

Uniparker N5303
Independent and semi-automated parking on 3 tiers without pillars at the front. Lifting platforms are used on the lower as well as upper tier and shifting platforms at the entrance level.
- Independent parking on 3 levels, with pit
- Lower level provided with lifting platforms, middle level with lifting/sliding platforms, entrance level with sliding platforms. With 2 empty spaces
- Lower level with lifting platforms, entrance level with sliding platforms and one empty space
- Modular construction: Depending on the conditions on site, it can be possible to add segments at will
- Load per parking space: Standard 2.000 Kg optional up to 2.300 Kg or 2.600 Kg
Pit Depth | Clear Height | Car Height Lower Tier | Car Height Middle Tier | Car Height Upper Tier |
|---|---|---|---|---|
From 175 cm | 325 cm | 150 cm | 150 cm | 150 cm |
To 230 cm | 375 cm | 205 cm | 205 cm | 150 cm |
Applications
- Private houses
- Residential buildings
- Hotels
- Office Buildings
- Car Dealers
Uniparker N5403
Semi-automated parking on 3 tiers, with 2 tiers below ground level. Lifting platforms are used on the lower tier whereas a combination of lifting and shifting platforms is used at the middle tier and shifting platforms only at the entrance level (upper tier). 2 empty parking spaces are required for each parking system.
- Independent parking on 3 levels, with 2 levels in the pit
- Lower level provided with lifting platforms, middle level with lifting/sliding platforms, entrance level with sliding platforms. With 2 empty spaces
- Lower level with lifting platforms, entrance level with sliding platforms and one empty space
- Modular construction: Depending on the conditions on site, it can be possible to add segments at will
- Load per parking space: Standard 2.000 Kg optional up to 2.300 Kg or 2.600 Kg
Pit Depth | Clear Height | Car Height Lower Tier | Car Height Middle Tier | Car Height Upper Tier |
|---|---|---|---|---|
From 370 cm | 210 cm | 152 cm | 152 cm | 185 cm |
To 450 cm | 250 cm | 192 cm | 192 cm | 225 cm |
Applications
- Private houses
- Residential buildings
- Hotels
- Office Buildings
- Car Dealers
Uniparker N5404
Independent and semi-automated parking on 4 tiers with pit used for the lowest tier. At the lower tier a combination of lifting and shifting platforms is installed whereas shifting platforms are used at the entrance level and lifting platforms for the both upper tiers. 2 empty parking spaces are required for each parking system. The parking is not only suitable for sedans but SUVs too.
- Independent parking on 4 levels, with 1 levels in the pit
- Lower level provided with lifting platforms, middle level with lifting/sliding platforms, entrance level with sliding platforms. With 2 empty spaces
- Lower level with lifting platforms, entrance level with sliding platforms and one empty space
- Modular construction: Depending on the conditions on site, it can be possible to add segments at will
- Load per parking space: Standard 2.000 Kg optional up to 2.300 Kg or 2.600 Kg
Pit Depth | Clear Height | Car Height Lower Tier | Car Height Middle Tier | Car Height Upper Tier |
|---|---|---|---|---|
From 210 cm | 530 cm | 150 cm | 150 cm | 150 / 150 cm |
To 260 cm | 680 cm | 200 cm | 200 cm | 200/200 cm |
Applications
- Private houses
- Residential buildings
- Hotels
- Office Buildings
- Car Dealers
