Parkline

Independent parking without pit

The “Parkline” solution is a semi-automated parking system without a pit, enabling flexible and independent parking. An empty parking space at the upper tier will be created by lifting and sliding platforms. Horizontally accessible platforms and the removal of pillars at the entrance area provide maximum convenience to car drivers. Moreover, gates at the upper tier increase security while reducing the risk of vandalism. Parkline is the ideal car parking system for residential buildings and hotels as well as for the automotive business.
  • Semi-automated parking system using intelligent shifting technology
  • Modular segments to fit to your parking needs
  • Variable car height (between 150 cm and 250 cm) according to the available clear height
  • Maximum parking convenience
  • Reduced collision risk when parking a car due to the removal of pillars at the entrance area
  • Width of parking space until 270 cm
  • Platform capacity of up to 2.6 t

Parkline N5102

Independent parking on 2 tiers with clear height starting from 330 cm, no pit required as well as no pillars at the entrance area .
Parkline N 5102
Parkline N5102
  • Independent parking on 2 levels, without pit
  • Upper level provided with lifting platforms, entrance
  • Level with sliding platforms and one empty space
  • Modular construction: Depending on the conditions on site, it can be possible to add segments at will
  • Load per parking space: Standard 2.000 Kg optional up to 2.300 Kg or 2.600 Kg
Clear
Height
Pillar
Height
Car Height
Lower Tier
Car Height
Upper Tier
From 330 cm
320 cm
150cm
150 cm
To 490 cm
480 cm
210 cm
250 cm

Applications

  • Residential buildings
  • Hotels
  • Office Buildings
  • Retail and Dealership Area's

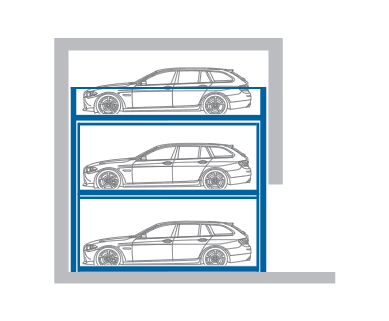

Parkline N5803

Independent parking on 3 tiers with clear height starting from 540 cm, no pit required

Moving sideways

In order to be able to slide side-ways an empty space in the middle and lower level is required.

Selection of a vehicle on the top platform

The middle and lower platforms slide automatically sideways.

Clear
Height
Pillar
Height
Car Height
Lower Tier
Car Height
Middle Tier
Car Height
Upper Tier
From 540 cm
440 cm
150 cm
150 cm
150 cm
To 660 cm
560 cm
190 cm
190 cm
190 cm

Applications

  • Residential buildings
  • Hotels
  • Office Buildings
