Quadroparker

The invisible parking System

kipp-parker-n3102
This parking system blends smoothly into your landscape because vehicles are stored below ground level and the upper platform can be individually designed according to your local site. Moreover, passengers can easily get in and out of the car since pillars at the upper tier are not required and each platform can be horizontally accessed. Pillars are only necessary for lower tiers. Due to its characteristics, the “Quadroparker” is most appropriate for courtyards, access roads and close surrounding properties.
  • Independent parking on up to 4 tiers below ground level
  • Width of parking space between 230 cm and 275 cm
  • Platform capacity between 2.0 t and 2.6 t
  • Traversable upper platform meaning it can be driven over
  • Individual design of upper platform (e.g. lawn, wooden floor, pebbles)

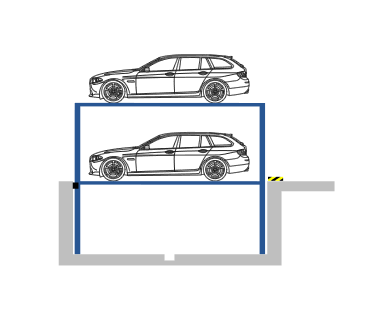

Quadroparker N4902

Independent parking on 2 tiers with pit depth starting from 190 cm and clear height starting from 330 cm. No columns or any other barrier in the area of the doors.

Quadroparker N 4902
Quadroparker-n4902
The upper platform is the basic position on area standard, the installation in lowered position. For driving on the lower platforms the system is put and raised by means of keyswitches and “dead man control “ into operation. Depending on the system can want to drive on the middle or lower platform now. Leadership wedges coordinated with the car take care that the car be stopped in the right position and damages are excluded. By pressing the keyswitch “lower” the installation is taken to starting position again. The key can be removed only now. Being allowe to not hold back themselves any persons during the operation in the installation.
Pit Depth
Car Height
Lower Tier
Car Height
Upper Tier
From 190 cm
155 cm
Free
To 260 cm
225 cm
Free

Applications

  • Private houses
  • Residential buildings
  • Hotels
  • Office Buildings

QUADROPARKER N4903

Car stacker for independent parking on 2 tiers with inclined accessible platforms (upper tier: 4.5°, lower tier: 6.5°). No columns or any other barrier in the area of the doors. All platforms are horizontally accessible.
Quadroparker N 4903
QUADROPARKER N4903
The upper platform is the basic position on area standard, the installation in lowered position. For driving on the lower platforms the system is put and raised by means of keyswitches and “dead man control “ into operation. Depending on the system can want to drive on the middle or lower platform now. Leadership wedges coordinated with the car take care that the car be stopped in the right position and damages are excluded. By pressing the keyswitch “lower” the installation is taken to starting position again. The key can be removed only now. Being allowe to not hold back themselves any persons during the operation in the installation.
Pit Depth
Single
Car Height
Lower Tier
Car Height
Middle Tier
Car Height
Upper Tier
From 350 cm
150 cm
150 cm
Free
To 450 cm
200 cm
200 cm
Free

Applications

  • Private houses
  • Residential buildings
  • Hotels
  • Office Buildings

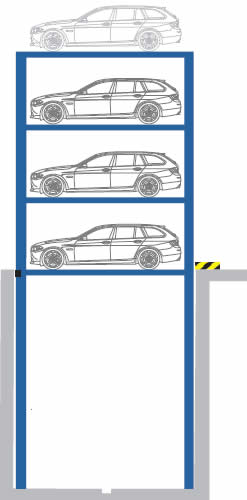

QUADROPARKER N4904

Quadroparker-n4904

Independent parking system on 4 levels
Lower levels: System columns on the corners
Upper level: Without columns
Individual configuration possibilities for the upper platform available on request (e.G. Wooden covering) single (4 cars) and double system (8 cars)
Load per parking space: 2.000 Kg (standard)
Up to 2.600 Kg (optional)

Pit Depth
Front-Back
Clear Height
(CH)
Car Height
Below
Car Height
Middle 1
Car Height
Middle 2
Car Height
Above
570 cm
From 535 cm
160 cm
160 cm
160 cm
From 155 cm*
600 cm
From 565 cm
170 cm
170 cm
170 cm
From 155 cm*

Applications

  • Private houses
  • Residential buildings
  • Hotels
  • Office Buildings
