Lift Parker

Double parking space for convenient parking with pit

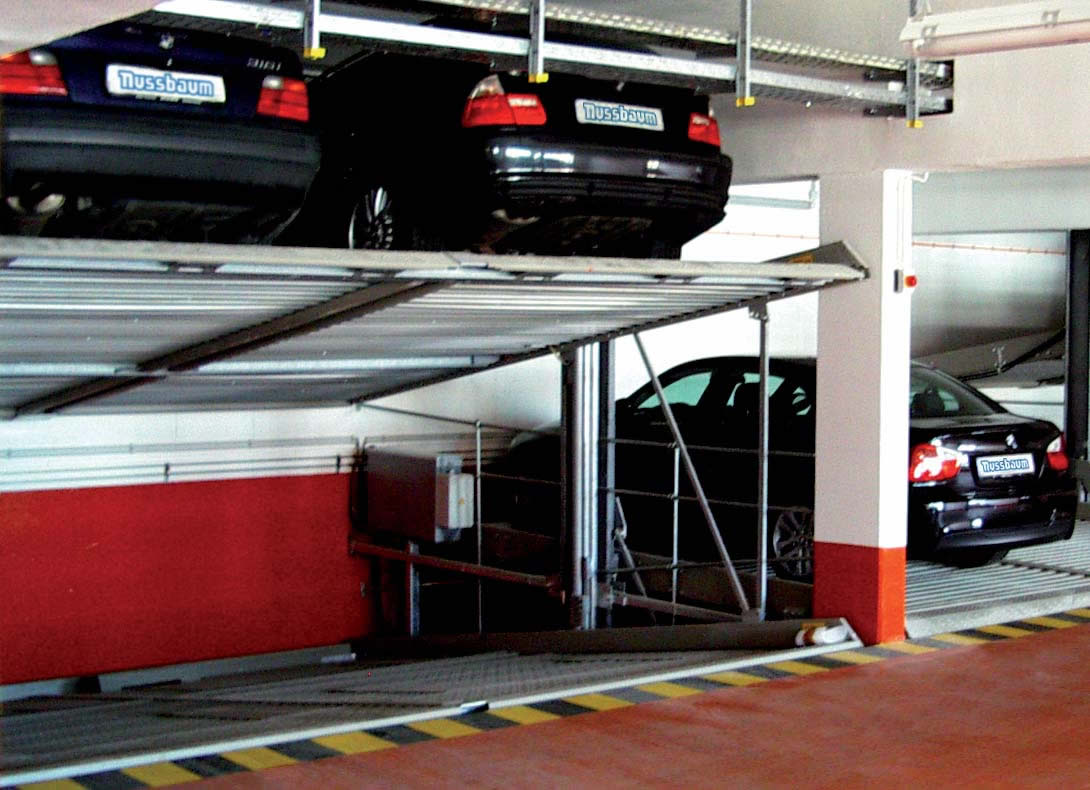

Liftparker N4102

The “Liftparker” parking system provides convenient parking on 2 or 3 tiers with pit. Cars parked on the upper tiers can be easily retrieved without removing cars at lower tiers. Off-center pillars increase the comfort when opening car doors. The independent car stacker is an ideal solution for residential and office buildings as well as hotels and houses

  • Mechanical car stacker
  • Flexible and adjustable based on project requirements
  • Appropriate for car heights between 150 cm and 240 cm
  • Width of parking space until 275 cm
  • Length of parking space between 500 cm and 520 cm
  • Suitable for a pit depth of at least 165 cm
  • Platform capacity between 2.0 t and 2.6 t
  • Low maintenance and operation costs
  • Independent car parking system (Cars parked on the upper tiers can be easily retrieved without removing cars at lower tiers.)

Liftparker N4102

The best solution for ceiling heights below 3m.

Stackable parking on 2 tiers with pit. Upper platform with horizontal access and lower platform sloped.

Liftparker N 4102
Specifications
Pit depth front / rear
from 170 / 165 cm to 200 / 195 cm
Clear height
from 295 cm to 325 cm
Car height lower tier
From 150 cm to 180 cm
Car height upper tier
From 150 cm to 150 cm

Applications

  • Residential buildings
  • Hotels
  • Office Buildings
  • Single Garages Above Ground
  • Prefabricated Garages

Liftparker N4402

Liftparker N 4402
Liftparker N 4402
The conventional car parking system for independent parking on 2 tiers with pit. Appropriate for underground garages with clear heights starting from 325 cm.
Specifications
Pit depth front / rear
from 170 / 165 cm to 200 / 195 cm
Clear height
from 295 cm to 355 cm
Car height lower tier
From 150 cm to 180 cm
Car height upper tier
From 150 cm to 150 cm

Applications

  • Residential buildings
  • Hotels
  • Office Buildings
  • Single Garages Above Ground
  • Prefabricated Garages

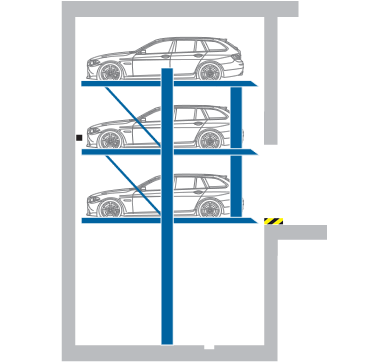

Liftparker N4403

Liftparker_n4403

Stackable parking on 3 tiers with pit; especially suitable for roofed courtyards.

Specifications
Pit depth front / rear
from 335 / 330 cm to 385 / 380 cm
Clear height
from 485 cm to 545 cm
Car height lower tier
From 150 cm to 175 cm
Car height middle tier
From 150 cm to 175 cm
Car height upper tier
From 150 cm to 150 cm

Applications

  • Residential buildings
  • Hotels
  • Office Buildings
  • Single Garages Above Ground
  • Prefabricated Garages

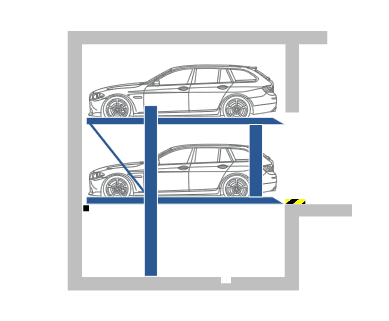

Liftparker N4602

Liftparker N 4602
Lift Parker 4602

Stackable parking on 2 tiers with both platforms horizontal accessible. Appropriate for car parking garages with clear heights starting from 325 cm.

Revised design of the traditional solution with offset columns for higher comfort when “opening the door”.

Specifications
Pit depth front / rear
from 170 / 170 cm to 200 / 200 cm
Clear height
from 320 cm to 350 cm
Car height lower tier
From 150 cm to 180 cm
Car height upper tier
From 150 cm to 150 cm

Applications

  • Residential buildings
  • Hotels
  • Office Buildings
  • Single Garages Above Ground
  • Prefabricated Garages

Liftparker N4802

Liftparker_n4802
The 2 tier car parking system offers additional convenience for getting in and out of the car by providing additional parking space (up to 275 cm wide) and removing pillars on the side.
Specifications
Pit depth front / rear
from 170 / 170 cm to 200 / 200 cm
Clear height
from 320 cm to 350 cm
Car height lower tier
From 150 cm to 180 cm
Car height upper tier
From 150 cm to 150 cm

Applications

  • Residential buildings
  • Hotels
  • Office Buildings
  • Single Garages Above Ground
  • Prefabricated Garages
