StoreParker

Low Cost parking Solution To Create Additional Space

The “Storeparker” is a low-cost parking solution to create additional parking space while minimizing installation and maintenance costs because a pit is not required.

To retrieve cars at the upper tier, the parking lot underneath needs to be empty (dependent parking). Car drivers will enjoy maximum comfort due to the horizontally accessible platforms and the removal of pillars at the entrance area.

The “Storeparker” is particularly valued by providers of valet parking, car rental companies or car dealerships.

  • Mechanical car stacker
  • Dependent parking system (requires moving the lower vehicle before retrieving the upper vehicle)
  • Flexible and adjustable based on project requirements
  • Width of parking space between 214 cm and 275 cm
  • Width of parking space until 275 cm
  • Platform capacity between 2.0 t and 3.0 t
  • Low initial installation costs
  • Extremely low maintenance costs

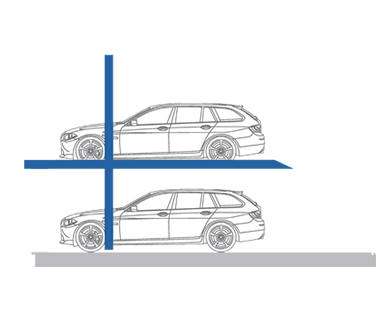

Storeparker N2102

The hydraulic STOREPARKER N2102 is used to double the number of parking space without a pit. The parking system serves as dependent parking, which means (the space below has to be free) to park on the platform above in and out.

Storeparker-N2102
  • Dependent parking on 2 levels, without pit
  • The platform is accessible horizontally
  • Storage and parking of vehicles for up to 2.600 kg
  • Minimal requirements on the installation area
  • Available for indoor and outdoor operation
Clear
Height
Pillar
Height
Car Height
Lower Tier
Car Height
Upper Tier
325 cm
295 cm
150cm
150 cm
350 cm
320 cm
175 cm
150 cm
380 cm
350 cm
205 cm
150 cm

Applications

  • Car dealerships
  • Private car parks
  • Car rental areas
  • Private car parks

Storeparker N2503

Dependent parking solution on 3 tiers above ground level. Lift platforms are used on the upper tier. When installing outside, the “Storeparker” can be protected with a roof.
Storeparker N2503
Storeparker N2503
  • Dependent parking on 3 levels, without pit
  • Upper levels provided with lifting platforms, entrance level without platforms
  • Modular construction: Depending on the conditions on site, it can be possible to add segments at will
  • Load per parking space: Standard 2.000 Kg optional up to 2.300 Kg or 2.600 Kg
Clear
Height
Pillar
Height
Car Height
Lower Tier
Car Height
Middle Tier
Car Height
Upper Tier
525 cm
503 cm
165 cm
165 cm
150 cm
570 cm
550 cm
180 cm
180 cm
165 cm
610 cm
600 cm
200 cm
200 cm
165 cm

Applications

  • For Interiors and Exteriors
  • Hotels and Office Buildings
  • Residential Apartments
  • Car Dealers
